80L Programmable Temperature Humidity Test Chamber with Customized Temperature Centrifugal Fan and Touch Screen Controller

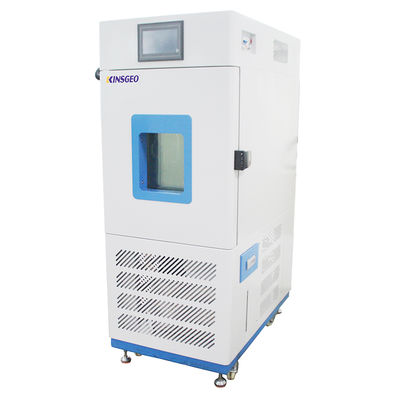

Gambar besar : 80L Programmable Temperature Humidity Test Chamber with Customized Temperature Centrifugal Fan and Touch Screen Controller

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	KINSGEO
Sertifikasi:	ISO, CE and etc.
Nomor model:	KJ-2092

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	dapat dinegosiasikan
Kemasan rincian:	Kotak kayu lapis
Waktu pengiriman:	10 hari setelah pesanan
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan:	100 set per bulan

Kontak

Detil Deskripsi produk

Nama Produk:	Ruang Uji Kejutan Termal Dua Kotak/Tiga Kotak	Volume:	80L、150L、225L（Dapat disesuaikan)
Jaminan:	12 bulan	Kisaran Suhu:	Suhu yang disesuaikan
Fluktuasi:	Suhu±1℃;Kelembaban±2%	tingkat pemanasan:	Sekitar 1,0~3,0℃/menit
Menyoroti:	Customized Temperature Test Chamber , Centrifugal Fan Humidity Chamber , Touch Screen Controller Temp Chamber

80L Programmable Temperature And Humidity Test Chamber

Programmable Temperature & Humidity Test Chamber / Constant Temperature Humidity Chamber / Temp Humidity Chamber

Advantages of Temperature Humidity Test Chamber

One machine, multiple functions
Long time 85°C / 85% RH test
Cold resistance test
Thermal cycle test
High and low temperature test
Storage condition
Calibration function
Wide temperature ranges and volume selection
Programmable touch screen controller

Standards Compliance

GB11158, GB10589-89, GB10592-89, GB/T10586-89, GB/T2423.1-2001, GB/T2423.2-2001, GB/T2423.3-93, GB/T2423.4-93, GB/T2423.22-2001, IEC60068-2-1.199, IEC60068-2-2.197, GJB150.3, GJB150.4, GJB150.9.

Technical Parameters

Model	A	B	C	D	E	F
Size of inner box (W×H×D)	40×50×40 cm	50×60×50 cm	40×75×60 cm	60×85×80 cm	100×100×80 cm	100×100×100 cm
Size of outer box (W×H×D)	92×138×108cm	102×146×116 cm	102×162×126cm	113×172×148 cm	150×186×139 cm	158×188×168 cm
Volume of inner box	80L	150L	225L	408L	800L	1,000L
Control range of temperature and humidity	A:-20℃～150℃ B:-40℃-～150℃ C:-60℃～150℃ D:-70℃～150℃ RH20%～98%
Performance	Fluctuation of temperature and humidity: ±0.5℃；±2.5%RH Deviation of temperature and humidity: ±0.5℃～±2℃；±3%RH(＜75%RH)；±5%RH(≥75%RH) Accuracy of control analysis: ±0.3℃；±2.5%RH
Controller brand	Customized
Material	Interior: #SUS 304 Steel plate Exterior: White&Blue
Thermal insulation material	High temperature and high density vinyl chloride for mate foam insulation material
System wind path circulation	Centrifugal fan - wide band forced air circulation (upper in, lower out)
Refrigerating method	Single stage mechanical compression refrigeration
Refrigerating machine	Fully enclosed piston type compressor From TAIKANG French
Refrigerant	R4O4A/Dupont environmental refrigerant(R23+R4O4)
Condensation method	Air or water cooled
Heater	Nickel-chromium electric heating wire heater
Humidifier	Semi-enclosed steam humidification
Water supply method	Fully automatic circulating water supply (manual Watering)
Standard equipment	View window (double-layer hollow tempered glass)×1, 50mm test hole position and left×1, PL box light×1, partition×2, dry and wet ball gauze×1 fuse×3 rubber soft plug ×1, power cord×1
Safety device	No fuse switch, (compressor overload, refrigerant high and low pressure, ultra-humidity and over-temperature) protection switch, fuse fault warning system
Power	1φ, 220V AC±10% 50Hz 3φ, 380V AC±10% 50Hz

About Us

Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

Order process:
We offer below business terms:

Accepted Delivery Terms:	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency:	USD, EUR, HKD, CNY
Accepted Payment Type:	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port:	Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or required

Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
