5000N Double Column Universal Testing Machine

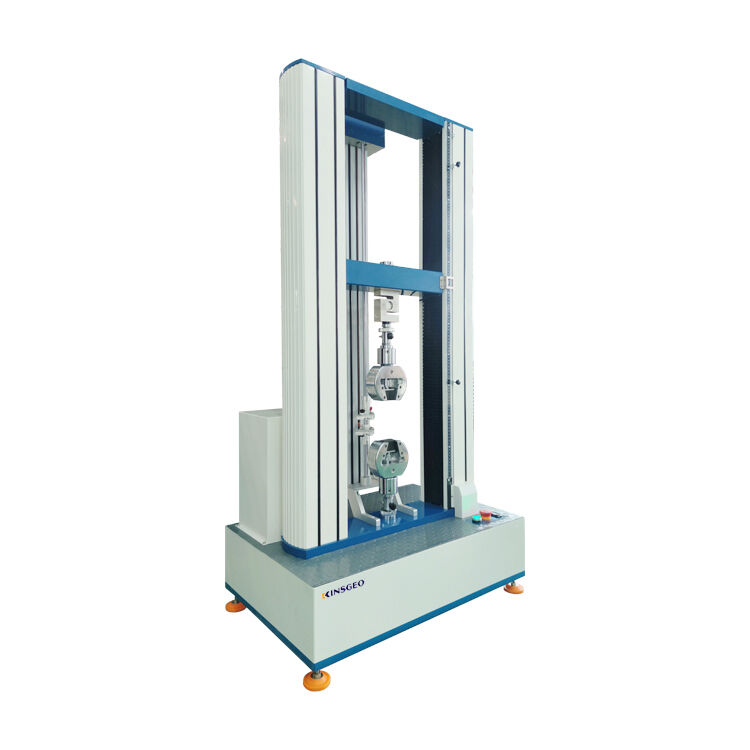

Gambar besar : 5000N Double Column Universal Testing Machine

Detail produk:

Tempat asal:	Dongguan, Cina
Nama merek:	KEJIAN
Sertifikasi:	ISO,CE and etc.
Nomor model:	KJ-1066A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Satuan
Harga:	Negotiate
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu lapis
Waktu pengiriman:	Tersedia, 3-7 hari kerja setelah kami mengkonfirmasi pesanan
Syarat-syarat pembayaran:	T/T,Western Union,MoneyGram,L/C,T/T
Menyediakan kemampuan:	5000 set/tahun

Kontak

Detil Deskripsi produk

Motor:	Motor Servo Panasonic	Kecepatan Tes:	0,1-500mm/menit dapat dipilih
Ketepatan:	± 0,5%	Kapasitas:	5, 10,1000N,20KN Opsional
Lebar pengujian yang efektif:	390mm	Aplikasi:	karet, plastik, nilon, kulit dan lain-lain
Standar Desain:	ASTM D903, GB/T16491 dan lain-lain
Menyoroti:	double column universal testing machine , 5000N Universal Testing Machine

New Design 20Kn Tabletop Digital Display Universal Tensile Testing Machine

Double Columns 10Kn Electronic Tensile Tester

Universal Tensile Testing Machine and Equipment is the double columns pulling and pressure testing machine, suitable for testing strength of various materials including plastic film, composite materials, soft packaging materials, plastic hose, adhesive materials, medical patches, non-woven fabric, rubber, paper fiber and more.

Key Features

Machine body made of high strength steel die with force column of high strength aluminum
High-grade imitation car shell paint treatment with specular finish
Non-toxic, non-polluting, non-combustible paint film that's ageing-resistant
Precise servo motor for accurate operation
High-precision sensor for accurate force testing
Interchangeable clamps for different test requirements

Technical Specifications

Items	Tensile Testing Machine
Capacity	100. 200. 500. 1000. 2000. 3000. 5000. 10000kg
Unit Switchover	G, KG, N, LB
Display Device	LCD or PC / Tensile Testing Machine
Resolution	1/250,000
Accuracy	±0.5%
Max. Stroke	1000mm (including fixture)
Test Speed	0.1-500mm/min (adjustable)
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	AC220V, 50HZ or customized
Weight	Approx.500kg / Tensile Testing Machine
Accessories parts	Tensile clamp, computer system, English software CD, operation CD, user manual

Application Industries

This Universal Tensile Strength Testing Machine is widely used in rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, wire and cables, packaging materials, medical equipment, research laboratories, technical supervision departments, and building materials industries.

Customer Support Services

Onsite Service: Device installation, equipment operation test, technology training, calibration, and maintenance
Technical Support: 24-hour online contact, free software upgrades
Free Resources: Product instructions, operation videos, test applications and reports
Problem Resolution: Social media support, email communication, video conferencing, and door-to-door service

Commitment to Quality

We guarantee a response within 48 hours and solution within 3 working days for any testing process issues. We provide operation videos and English manuals, along with video conference support when needed.

Specialized clamps available to exactly fit your test requirements!

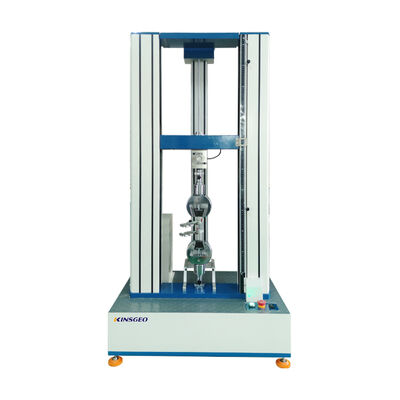

5000N Double Column Universal Testing Machine 0

5000N Double Column Universal Testing Machine 1
