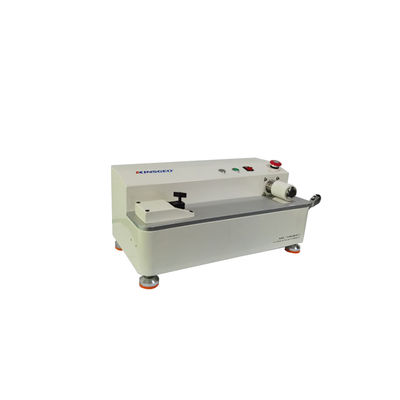

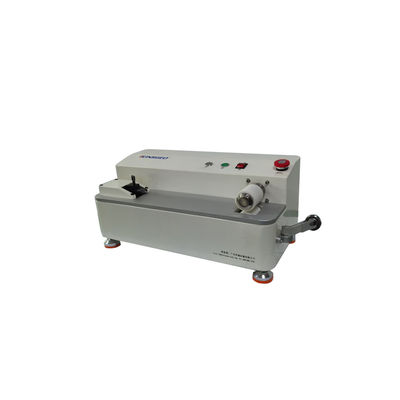

Horizontal High-speed Peel Force Testing Machine with 1000N Max Load and 0.01-500mm/min Speed for 90° to 180° Adjustable Angle

Gambar besar : Horizontal High-speed Peel Force Testing Machine with 1000N Max Load and 0.01-500mm/min Speed for 90° to 180° Adjustable Angle

Detail produk:

Tempat asal:	Tiongkok
Nama merek:	KINSGEO
Sertifikasi:	CE
Nomor model:	KJ-1065A-H

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	USD/2900/SET
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	30set/bulan

Kontak

Detil Deskripsi produk

Kekuatan:	Elektronik, 220V	Penggunaan:	Mesin Uji Tarik, Mesin Uji Kekuatan, Alat Uji Tekstil, Mesin Uji Universal
Nama Produk:	Alat uji pengelupasan pita/alat uji pengelupasan perekat	Jaminan:	1 tahun
Aplikasi:	Penguji pita perekat	Standar:	Sistem saraf pusat.4158,IEC68, GB/T
Rentang pengukuran:	5kg,100N,10~1000KN	Memuat:	0~100kg
Berat:	Sekitar 145 kg	Kapasitas:	100
Catu Daya:	AC220V 10% 50HZ	Dimensi:	6503301730mm
Fungsi:	Mesin uji Pita Perekat	Ketepatan:	± 0,5%
Kelas Akurasi:	kelas 0,5	MAX LOAD:	1000n
Kecepatan tes:	0,01-500mm/mnt
Menyoroti:	1000N Max Load Peel Force Testing Machine , 0.01-500mm/min Speed Peel Adhesion Test Equipment , 90° to 180° Adjustable Angle Tape Peeling Tester

Horizontal High-speed Peel Force Testing Machine

This universal tensile testing machine complies with PSTC, ASTM, TLMI, FINAT and AFERA standards, supporting both 90° and 180° applications. Designed as an enhanced solution for peel force and tape removal force testing, it was developed to meet global demands for precise adhesion measurement.

Key Features

Compatible with data collection systems and KINSGEO operation software for comprehensive data management
Adjustable stretching speed (100mm/min - 30000mm/min)
Configurable testing angles (90° to 180°)
Multiple load cell options available for different testing requirements

Technical Specifications

Parameter	Value
Voltage	AC 220V / 50Hz
Dimensions (H×W×D)	850mm × 1200mm × 350mm
Effective Travel	700mm
Weight	65KG
Load Cell Options	2KG, 5KG, 10KG, 20KG

Recommended Load Cells

Adhesion force testing: 10KG or 5KG
Peel force testing: 2KG or 5KG

Compliance Standards

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453, ASTM E4, ASTM D1876, ASTM F2256, EN1719, EN 1939, ISO 11339, ISO 36, EN 1465, ISO 13007, ISO 4587, ASTM C663, ASTM D1335, ASTM D5733, ASTM D2261, ASTM F2458, EN 1465, ISO 2411, ISO 4587, ISO/TS 11405, ASTM D5034, ASTM D4632.

Manufacturer: Guangdong KeJian Testing Instrument Co., LTD.
Founded in 2003, we are a professional manufacturer specializing in precision testing instruments and comprehensive test solutions. With our professional R&D team and excellent production management, we continuously provide customers with high-quality products and services, establishing ourselves as a leading instrumentation supplier in the industry.

Label:

Kontak Person: Miss. Silivia Zhang

Tel: 86-13925519875

Faks: 86-0769-28638013
