High Precision Universal Testing Machine with Accuracy ≤0.5% and Testing Speed 0.5~1000mm/min for Material Testing

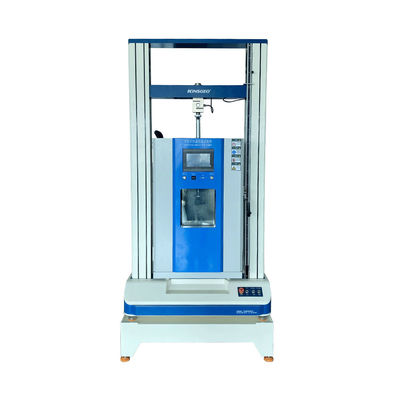

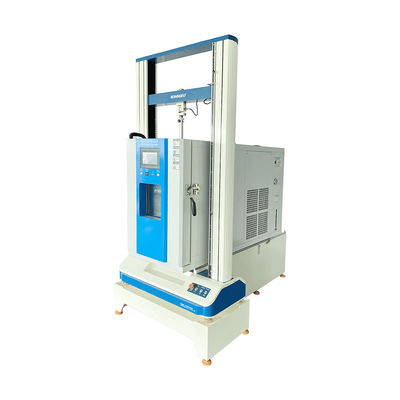

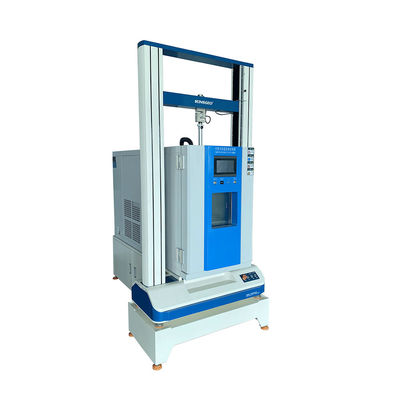

Gambar besar : High Precision Universal Testing Machine with Accuracy ≤0.5% and Testing Speed 0.5~1000mm/min for Material Testing

Detail produk:

Tempat asal:	CINA
Nama merek:	KINSGEO
Sertifikasi:	CE/ISO
Nomor model:	KJ-1067

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	USD/8800/SET
Waktu pengiriman:	15 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	30set/bulan

Kontak

Detil Deskripsi produk

Kapasitas:	Kapasitas	Model:	KJ-1067
Metode operasi:	Operasi Windows	Resolusi:	1/2500.000
Ketepatan:	≤0,5%	Kecepatan pengujian:	0,5 ~ 1000mm/mnt
Stroke:	400、500、600mm (tinggi dapat disesuaikan)	Lebar tes:	40cm (dapat diubah dengan kebutuhan pelanggan)
Ruang uji:	（L × W × H） 40 × 40 × 70cm	Motor:	Motor Servo Panasonic
Penjepit:	Kustomisasi dengan kebutuhan pelanggan (klem tarik dan tekan)	Kisaran Suhu:	-50 ℃～ 150 ℃
Kisaran Kelembaban:	20%RH ~ 98%RH	20%RH ~ 98%RH:	± 2,5%RH ， ± 1 ℃
Akurasi distribusi:	± 3%RH ， ± 1 ℃
Menyoroti:	Accuracy ≤0.5% Universal Testing Machine , Testing Speed 0.5~1000mm/min Universal Testing Machine , Stroke 400-600mm Universal Testing Machine

High Precision Constant Temperature And Humidity Universal Testing Machine

This advanced testing system combines high-low temperature environmental simulation with precise tensile and peel strength measurement capabilities. The integrated design eliminates environmental variation errors during testing processes.

Key Features

Dual-function design combining temperature/humidity testing with tensile/peel strength measurement
Configurable for 180° and 90° peel strength testing with customizable fixtures
Convertible to programmable temperature & humidity tester as needed
High-precision paint-coated aluminum structure with zero-clearance ball screw system
Panasonic servo motor ensures ±2% speed accuracy with quiet operation
PC-based control system with specialized testing software for complete parameter control
Double insulated glass observation window with stainless steel frame for durability

Standard Accessories

Customizable grips for various sample types
Specialized peeling tools for tape and film industry applications
Complete software package for test control, data acquisition, and reporting
English-language instructional video

Technical Specifications

High-Low Temperature Tester

Capacity	10kg
Model	KJ-1067
Units	g, kg, N, KN, LB
Operation method	Windows operation
Resolution	1/2,500,000
Accuracy	≤0.5%
Testing speed	0.5~1000mm/min
Stroke	400, 500, 600mm
Test width	40cm
Test space	(L×W×H)40×40×70cm
Motor	Panasonic servo motor
Drive type	High-precision ball screw
Weight	200kg
Power	1φ, 220V/50Hz
Power rating	0.4KW (depends on motor model)
Clamp	Customizable (tensile and compressive clamp)

Temperature and Humidity Chamber Specifications

Temperature range	-50℃～150℃
Temperature control	Computer P.I.D. automatic control
Humidity range	20%RH~98%RH
Control stability	±2.5%RH, ±1℃
Distribution accuracy	±3%RH, ±1℃
Temperature/humidity controller	Korea TEMI880
Circulation system	Wind forced circulation
Heating system	SUS#304 stainless steel heater
Humidifying system	Surface evaporation, transparent structure
Cooling system	Fan cooling mode, high efficiency all-sealed compressor
Dehumidifying system	Freezing latent heat dehumidification mode
