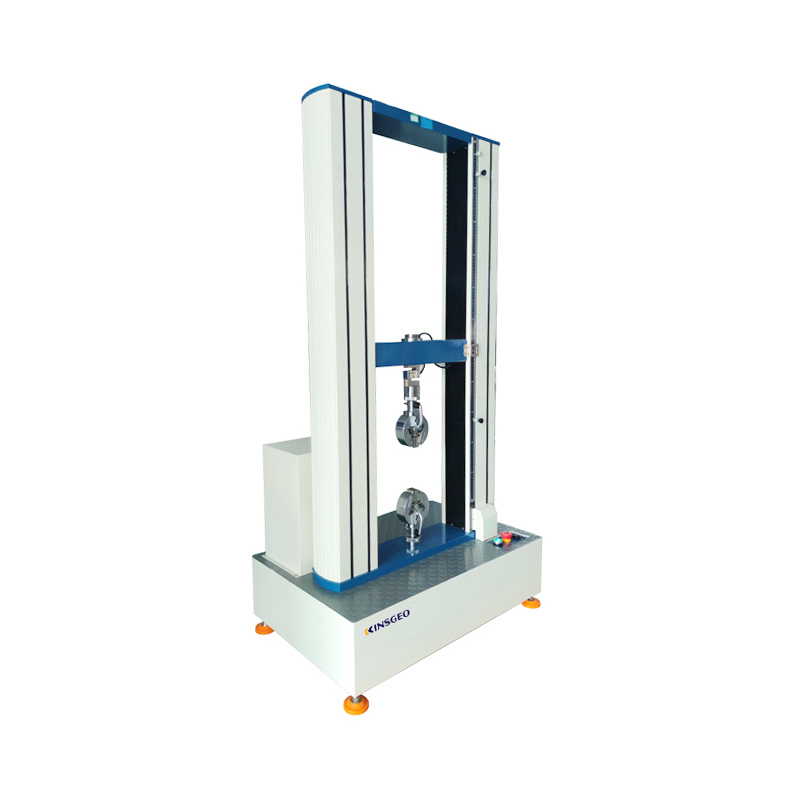

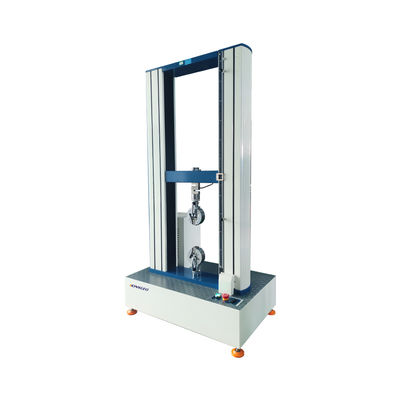

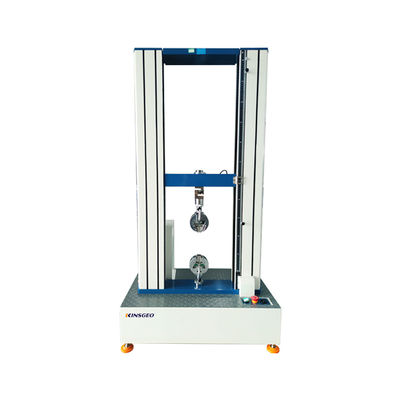

Double-column Universal Bending Testing Machine

Gambar besar : Double-column Universal Bending Testing Machine

Detail produk:

Tempat asal:	Dongguan, Cina
Nama merek:	KEJIAN
Sertifikasi:	ISO,CE and etc.
Nomor model:	KJ-1066A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 unit
Harga:	Negotiate
Kemasan rincian:	Setiap set dilindungi dengan serat resin dan film PP, kemudian dimasukkan ke dalam kotak kayu lapis
Waktu pengiriman:	Tersedia, 3-7 hari kerja setelah kami mengkonfirmasi pesanan
Syarat-syarat pembayaran:	T/T,Western Union,MoneyGram,L/C,T/T
Menyediakan kemampuan:	5000 set/tahun

Kontak

Detil Deskripsi produk

Motor:	Motor Servo Panasonic	Kecepatan tes:	0,1-500mm/menit dapat dipilih
Ketepatan:	± 0,5%	Kapasitas:	5, 10, 20KN Opsional
Lebar pengujian yang efektif:	390mm	Aplikasi:	karet, plastik, nilon, kulit dan lain-lain
Standar Desain:	ASTM D903, GB/T16491 dan lain-lain

Double-column Universal Bending Testing Machine

Product Introduction

Our dual column universal tensile testing machine is designed for evaluating the strength of various materials including plastic films, composite materials, soft packaging, rubber, paper fiber, and more. It performs comprehensive tests for tension, compression, bending, shearing, tearing, peeling, puncture, and three-point bending conditions.

Widely used in textile manufacturing, furniture production, wire mesh, adhesive tapes, film materials, medical equipment protective films, and related industries.

Key Features

High-strength steel die machine body with aluminum force columns
Premium automotive-grade paint finish for durability and aesthetics
Environmentally friendly, non-toxic paint that is aging-resistant
Precision servo motor for accurate operation
High-precision sensor for reliable force measurement
Interchangeable clamps for diverse testing applications

Technical Specifications

Items	Specifications
Capacity	100, 200, 500, 1000, 2000, 3000, 5000, 10000kg
Unit Switchover	G, KG, N, LB
Display Device	LCD or PC
Resolution	1/250,000
Accuracy	±0.5%
Max. Stroke	1000mm (including fixture)
Test Speed	0.1-500mm/min (adjustable)
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	AC220V, 50HZ or customized
Weight	Approx. 500kg
Accessories	Tensile clamp, computer system, English software CD, operation CD, user manual

Application Industries

Our universal tensile strength testing machine serves diverse industries including rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, wire and cables, packaging, medical equipment, research laboratories, and technical supervision departments.

Service & Support

Onsite Services:

Device installation and operation testing
Technical training and equipment calibration
Daily maintenance guidance

Additional Support:

Free technical training for visiting factories
24-hour online support
Free software upgrades
Comprehensive documentation including product instructions, operation videos, and test reports

Customer Commitment

We guarantee a response within 48 hours and solution provision within 3 working days for any testing process issues. We provide operation videos, English manuals, and video conference support.

Specialized manufacturer for mechanical properties measuring equipment. Custom clamps available to precisely fit your testing requirements!
