Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Capacity: | Capacity | Model: | KJ-1067 |
|---|---|---|---|
| Operation method: | Windows operation | Resolution: | 1/2500,000 |
| Accuracy: | ≤0.5% | Testing speed: | 0.5~1000mm/min |
| Stroke: | 400、500、600mm(Height can be customized) | Test width: | 40cm(can be changed by customer needs) |
| Test space: | （L×W×H）40×40×70cm | Motor: | Panasonic servo motor |
| Clamp: | customize by customer needs(tensile and compressive clamp) | Temperature range: | -50℃～150℃ |
| Humidity range: | 20%RH~98%RH | 20%RH~98%RH: | ±2.5%RH，±1℃ |
| Accuracy of distribution: | ±3%RH，±1℃ |

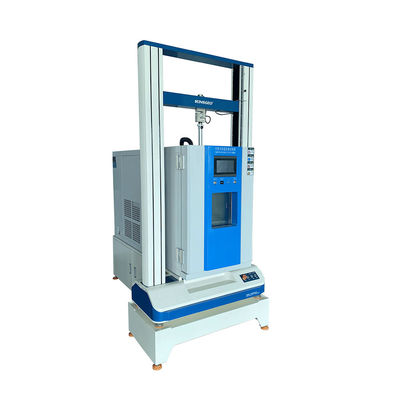

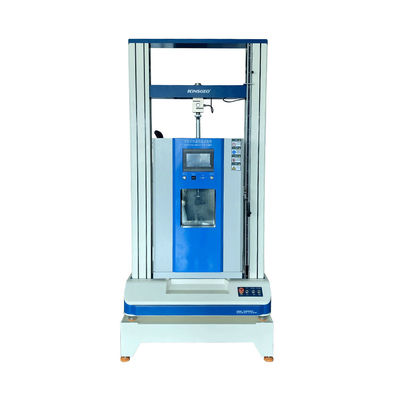

High-Low Temperature Tester With Tensile Peel Strength Tester With Environment Simulation Camber
Uses
This machine combines high-low temperature tester with tensile peel strength tester wonderfully. It can restrain the error brought by changing environment between testing process.Setting up different fixtures can test 180&90 degree peeling strength, separating force,etc. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.
Character
1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficient and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controlled in 2%.
3. That Using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing
output.
4.Have steady performance, high accuracy, powerful software function and easy operation.
5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder, not only beauty but corrosion resistance.
Accessories
1.Suitable Grips that meet customer sample need.
2.Special peeling tools for peel test in tape&film industry.
3.Software for test control,data acquisition and report.
4.English operation teach video.
| Capacity | 10kg |
| Model |
KJ-1067
|
| Unit |
g,kg,N,KN,LB
|
| Operation method |
windows operation
|
| resolution | 1/2500,000 |
| Accuracy | ≤0.5% |
| Testing speed | 0.5~1000mm/min |
| Stroke | 400,500,600mm |
| Test width |
40cm
|
| Test space | (L×W×H)40×40×70cm |
| Motor | Panasonic servo motor |
| Kind of drive | high-precision ball screw |
| Weight | 200kg |
| Power | 1φ,220V/50Hz |
| Rate of work | 0.4KW(depend on motor model) |
| Clamp | customize by customer needs(tensile and compressive clamp) |
| Temperature range | -50℃～150℃ |
| Temperature method | computer P.I.D.automatic control |
| Humidity range | 20%RH~98%RH |
| Stability of control |
±2.5%RH,±1℃
|
| Accuracy of distribution | ±3%RH,±1℃ |
| Temperature&humidity control | Korea TEMI880 |
| Circulatory System | Wind forced circulation |
| Heating System | SUS#304, stainless steel heater |
| Humidifying System | Surface evaporation, a transparent structure. |
| Cooling system | Fan cooling mode, high efficiency of all sealed compressor |
| Dehumidifying System | Freezing latent heat dehumidification mode |
